SMART-SIZED MODULAR PICK-AND-PLACE

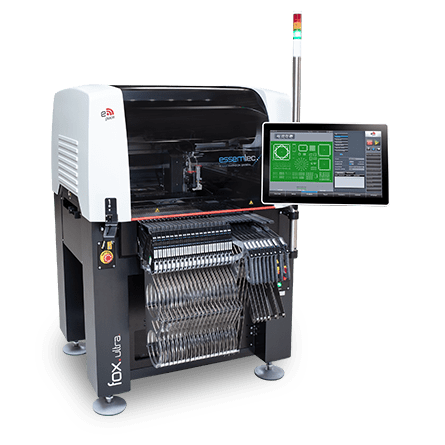

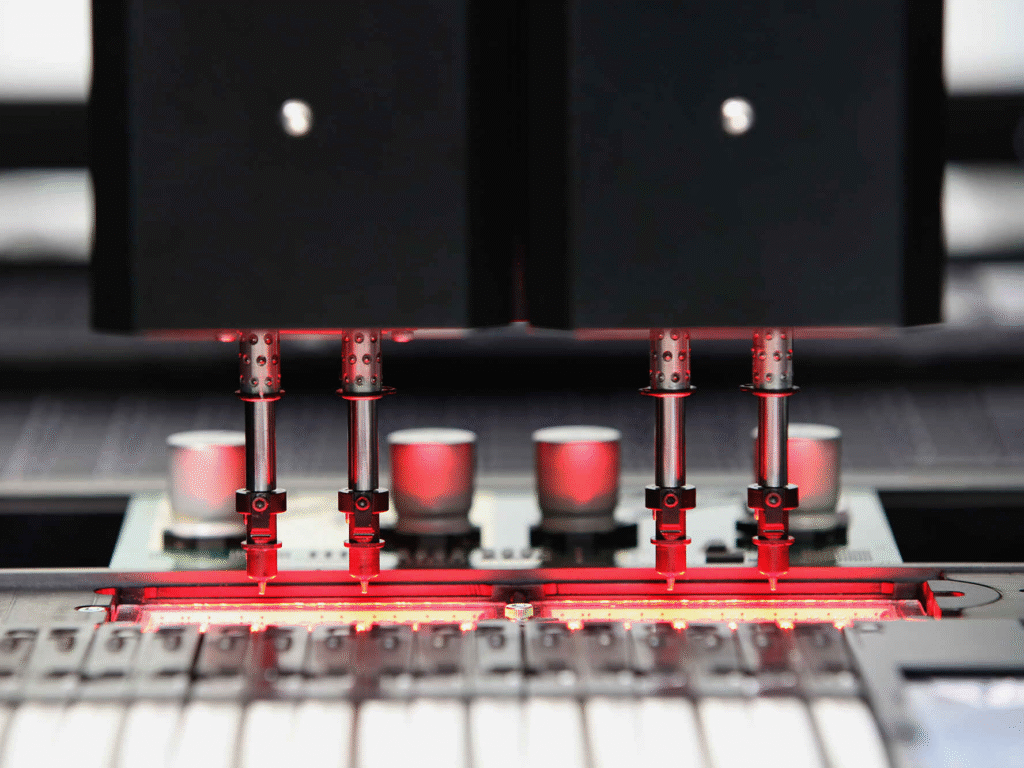

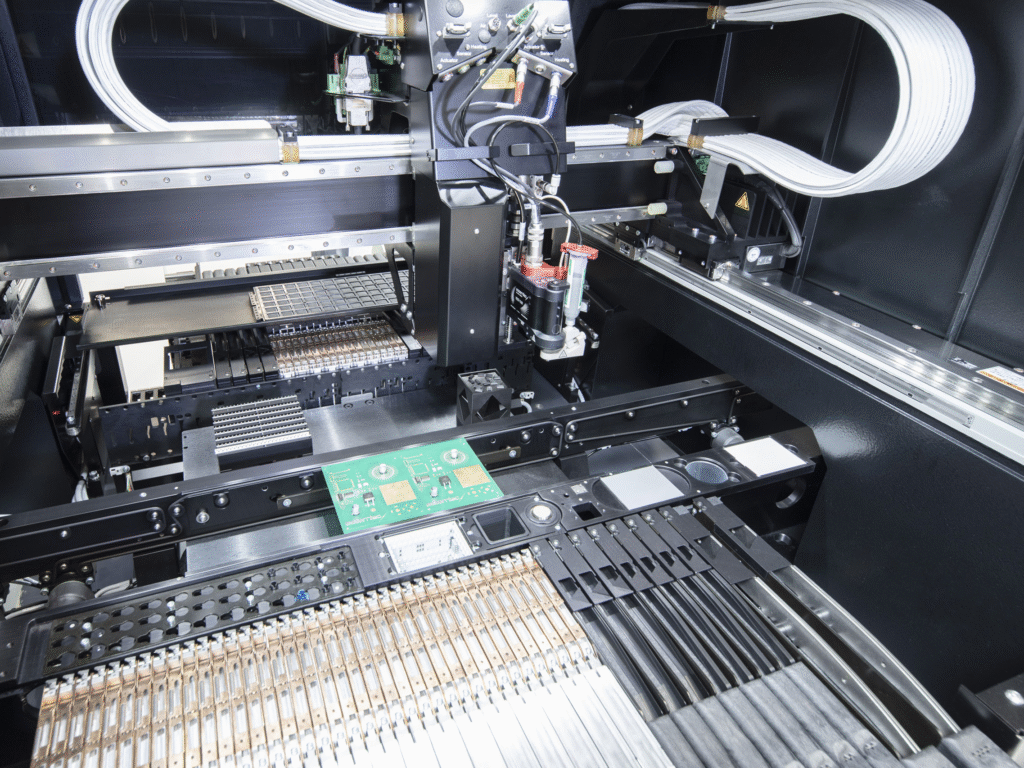

Introducing – The Fox Pack – State of the art technology. Expandable in any direction. The Fox can drive up to 200 feeder, illustrating its dedication to high-mix production. Due to its small footprint and reasonable weight, the machine is ideal for use in limited space production areas even those located on upper floors.

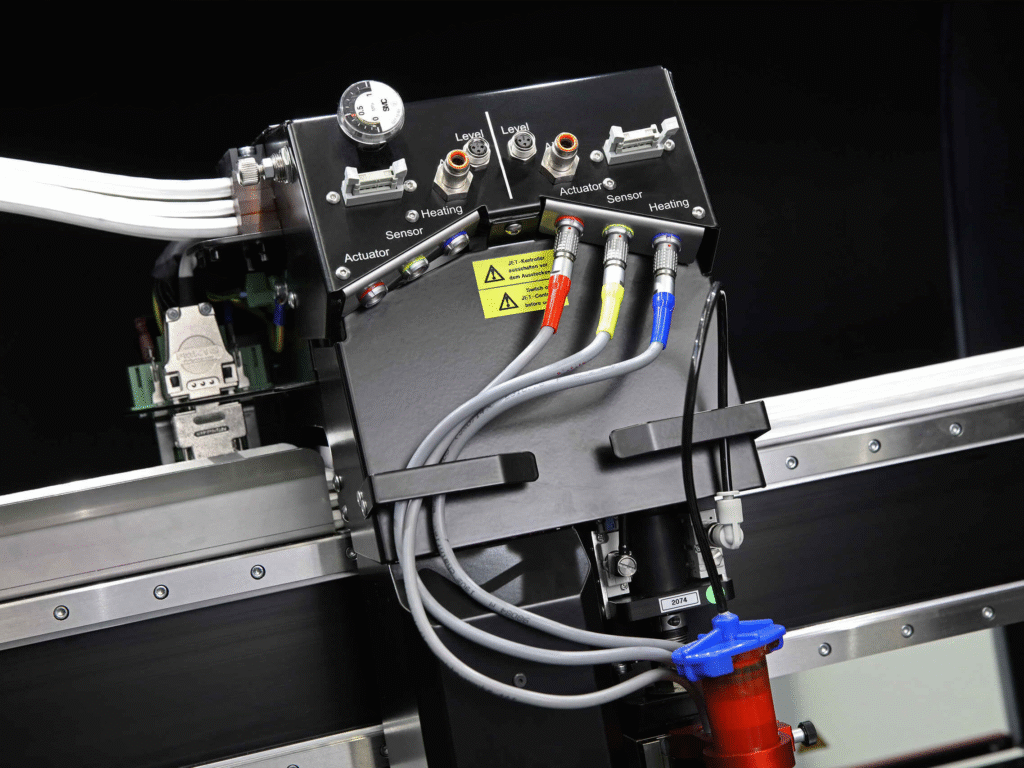

combined process
- Placing & dispensing in single pass-through
- Jet dispensing of solder paste or glue
productivity
- Up to 9’100 – 31’000 cph per module
- Valve performance 780’000 - System Ø 310’000 dots/h
small footprint
- Up to 200 feeder lanes on 1 sqm
- Up to 420 feeder lanes per line
mineral cast
- No vibration, symmetrical mineral casting
- No warpage, no thermal drift

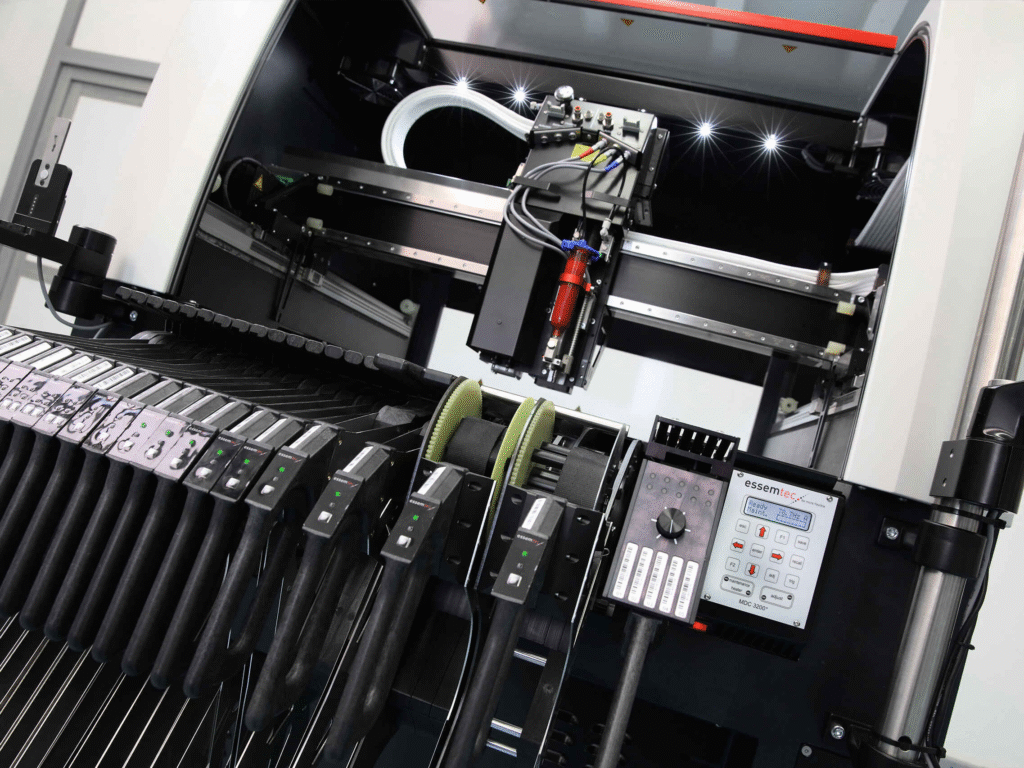

quick changeover
- Nonstop production, intelligent smart feeder
- Nonstop feeder and production changeover

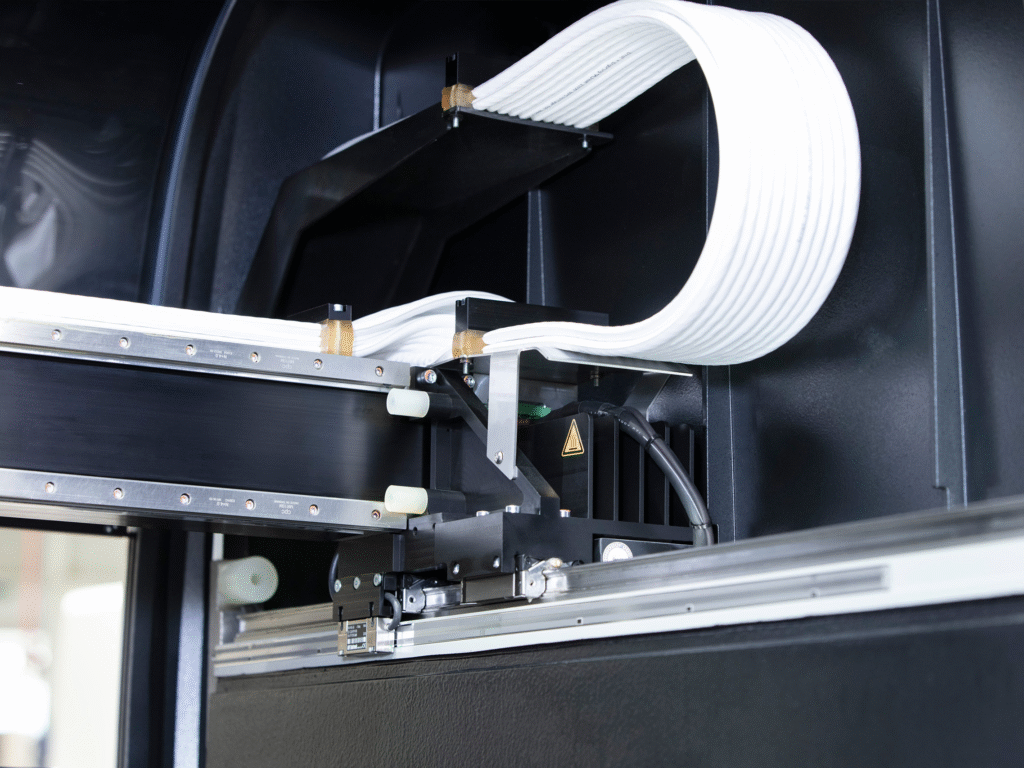

linear motors
- Fast, reliable double drive linear motors
- No maintenance, longest lifetime
| Fox4 | Fox2 | Fox | ||
|---|---|---|---|---|
| Productivity | Optimum placement speed | 18’100 cph (4-axes) | 12’000 cph (2-axes) | 7’000 cph (1-axis) |
| Optimum jetting speed | - | 150‘000 Dots/hh | - | |
| Feeder | Feeder capacity 8 mm Tape | 200 (140 inline) | 180 (120 inline) | 180 (120 inline) |
| Components | Component size range | 008004 (imp.) - 80 x 80 mm | (Note specs for constraints) | |
| Accuracy | Placement accuracy (x, y) | Chip ± 40 μm (3σ) / QFP ± 30 μm (3σ) | ||
| PCB | Max. PCB dimensions | 406 x 305 mm (16 x 12“) | ||
| Dimensions | Machine footprint | 880 x 1090 mm (34.7 x 43“) |
Valves and Pumps
| Piezo Jet | Shockwave Jet | Volume | Screw | Time-Pressure |
|---|---|---|---|---|
| SMD-Adhesives, Underfill, Silver Epoxy, UV-Adhesives, Globe Top, Encapsulation, Dielectric Ink |
Solder Paste, Liquid Metal |
Underfill, Gasketing, Globe Top, Dam and Fill, Solder Paste |
Solder Paste, SMD-Adhesive, Globe Top, Encapsulation, Silver Epoxy, Dam and Fill |
Gasketing, Globe Top, Encapsulation, Solder Paste, SMD-Adhesive, Silver Epoxy, Dam and Fill |
| Low - High Viscosity | High Viscosity | Low - High Viscosity | High Viscosity | High Viscosity |
| Max Frequency: 2'000'000 dots/h BGA Jet-on-the-Fly: 780'000 dots/h BGA Stop & Jet: 177'000 dots/h |
Max Frequency: 780'000 dots/h BGA Jet-on-the-Fly: 480'000 dots/h Average Speed: 310'000 dots/h |
26'000 dots/h (BGA Pattern*) |
30'000 dots/h (BGA Pattern*) |
38'000 dots/h (BGA Pattern*) |
* Full Speed: Dot size 0.5 mm, dot matrix 0.8 x 0.8 mm, 1000 dots, medium: Loctite 3621
