RELENTLESS ALL-TERRAIN DISPENSER

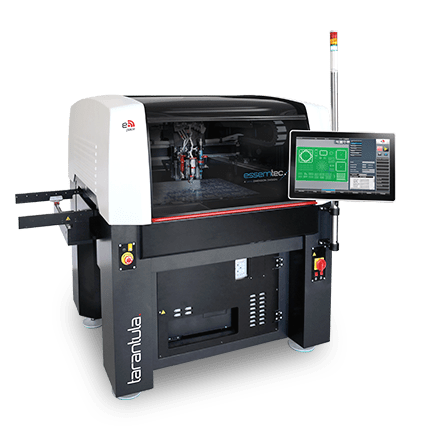

Introducing – The Tarantula – State of the art technology, easily integrated in any line. Wide range of dispensing applications such as Solder Paste and SMT Glue, LED Encapsulation, Silver Epoxy, Dam and Fill, Underfill, Cavity Fill, 3D Dispensing via laser height mapping and more.
dispense technology

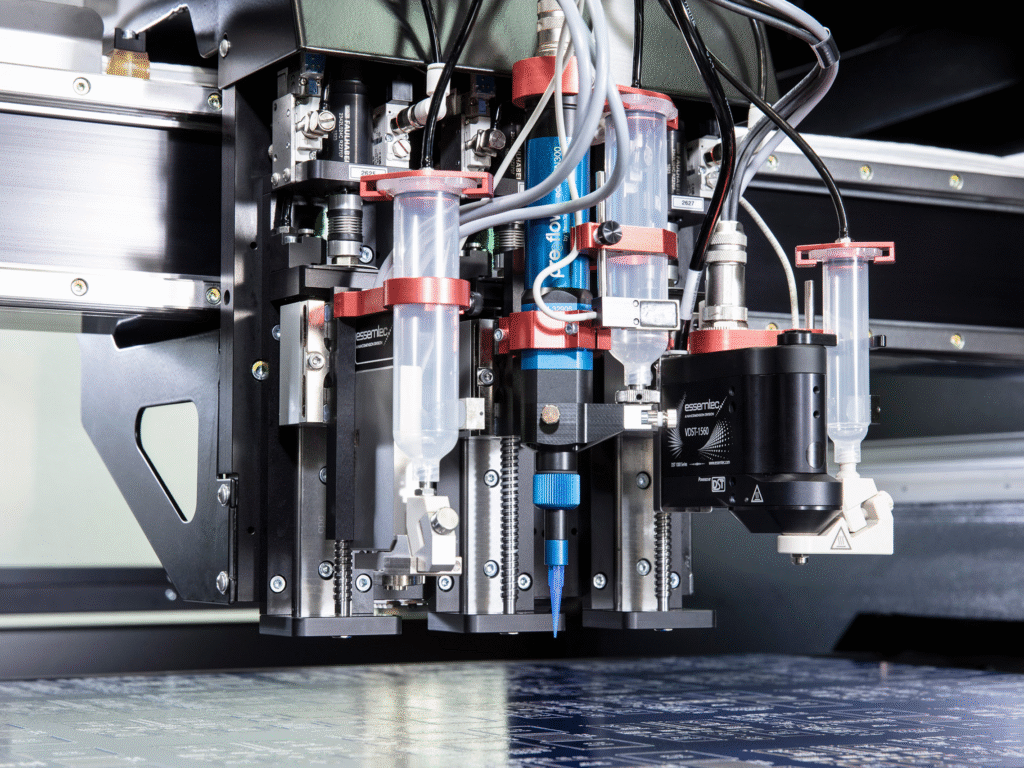

- Up to 3 dispense valves simultaneously
- 5 different valves, large application range
process control
- Monitoring sizes & weight of dispense dots
- Process control adjustment and dot stabilisation
productivity
- Valve performance 780’000 - System Ø 310’000 dots/h
- Up to 2’000’000 dots/h line mode

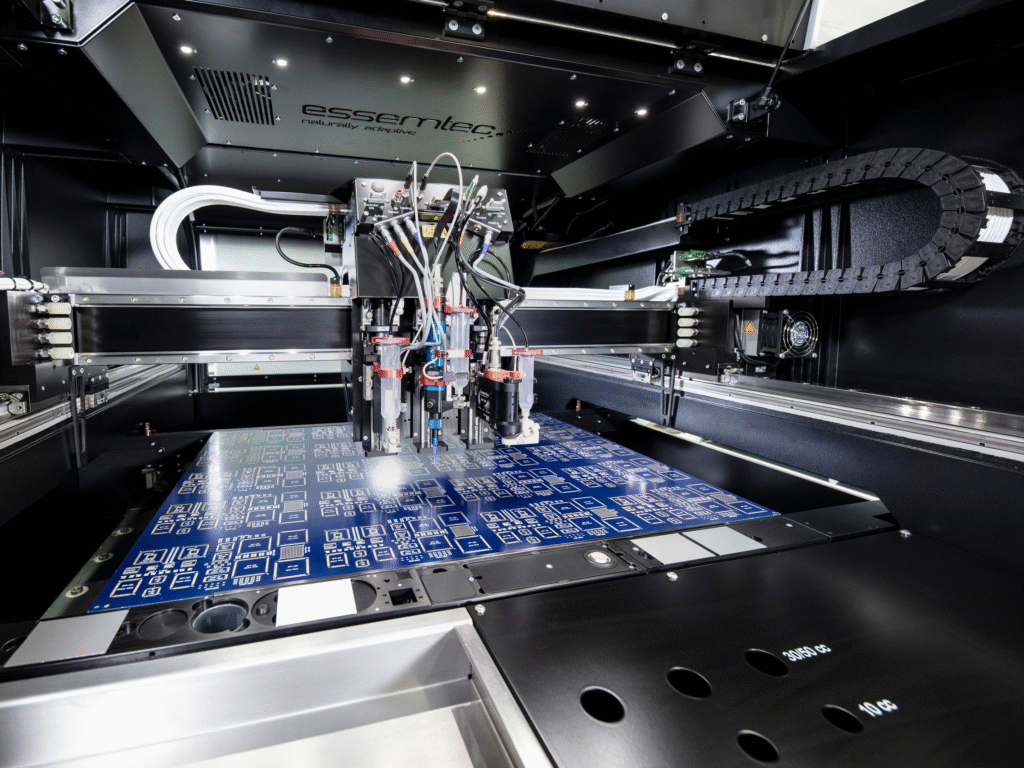

large dispense area
- PCB size 560 x 610 mm, optional 1’800 x 610 mm
- Up to 80 mm (3.35”) programmable Z stroke
mineral cast
- No vibration, symmetrical mineral casting
- No warpage, no thermal drift
height mapping
- Mapping of heights using laser technology
- Compensation of substrate warp / 3D contour
linear motors
- Fast, reliable double drive linear motors
- No maintenance, longest lifetime
| Tarantula | |||
|---|---|---|---|

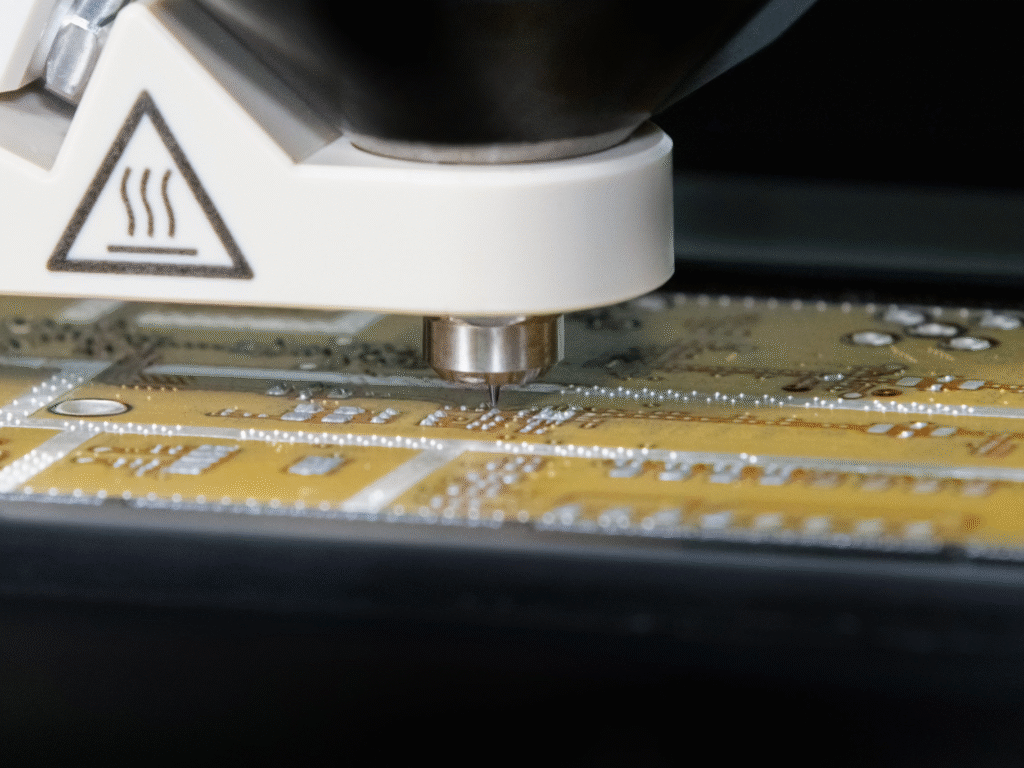

| Process | Maximum dispensing speed | Piezo Jet Valve: 145‘000 dots/h | |
| Dynamic Shockwave Valve: 77‘000 Dots/h | |||
| Time/Pressure Valve: 26‘000 Dots/h | |||
| Archimedean Screw Valve: 22‘000 Dots/h | |||
| Dispensing mode | Dot, line, curve, interpolated 3D contour | ||
| Accuracy | Placement XY dots | ±40 μm (3σ) | |
| Positioning Z axis | ±20 μm (3σ) | ||
| PCB | PCB dimensions | 560 x 610 mm (22 x 24“) | |
| Dimensions | Machine footprint | 1’557 x 1’357 mm (61 x 53“) |
Valves and Pumps
| Piezo Jet | Shockwave Jet | Volume | Screw | Time-Pressure |
|---|---|---|---|---|
| SMD-Adhesives, Underfill, Silver Epoxy, UV-Adhesives, Globe Top, Encapsulation, Dielectric Ink |
Solder Paste, Liquid Metal |
Underfill, Gasketing, Globe Top, Dam and Fill, Solder Paste |
Solder Paste, SMD-Adhesive, Globe Top, Encapsulation, Silver Epoxy, Dam and Fill |
Gasketing, Globe Top, Encapsulation, Solder Paste, SMD-Adhesive, Silver Epoxy, Dam and Fill |
| Low - High Viscosity | High Viscosity | Low - High Viscosity | High Viscosity | High Viscosity |
| Max Frequency: 2'000'000 dots/h BGA Jet-on-the-Fly: 780'000 dots/h BGA Stop & Jet: 177'000 dots/h |
Max Frequency: 780'000 dots/h BGA Jet-on-the-Fly: 480'000 dots/h Average Speed: 310'000 dots/h |
26'000 dots/h (BGA Pattern*) |
30'000 dots/h (BGA Pattern*) |
38'000 dots/h (BGA Pattern*) |
* Full Speed: Dot size 0.5 mm, dot matrix 0.8 x 0.8 mm, 1000 dots, medium: Loctite 3621
