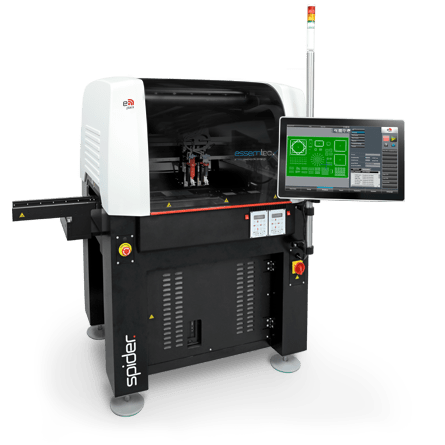

SMART-SIZED HIGH SPEED DISPENSER
Introducing – The Spider – State of the art technology, easily integrated in any line. Wide range of dispensing applications such as Solder Paste and SMT Glue, LED Encapsulation, Silver Epoxy, Dam and Fill, Underfill, Cavity Fill, 3D Dispensing via laser height mapping and more.

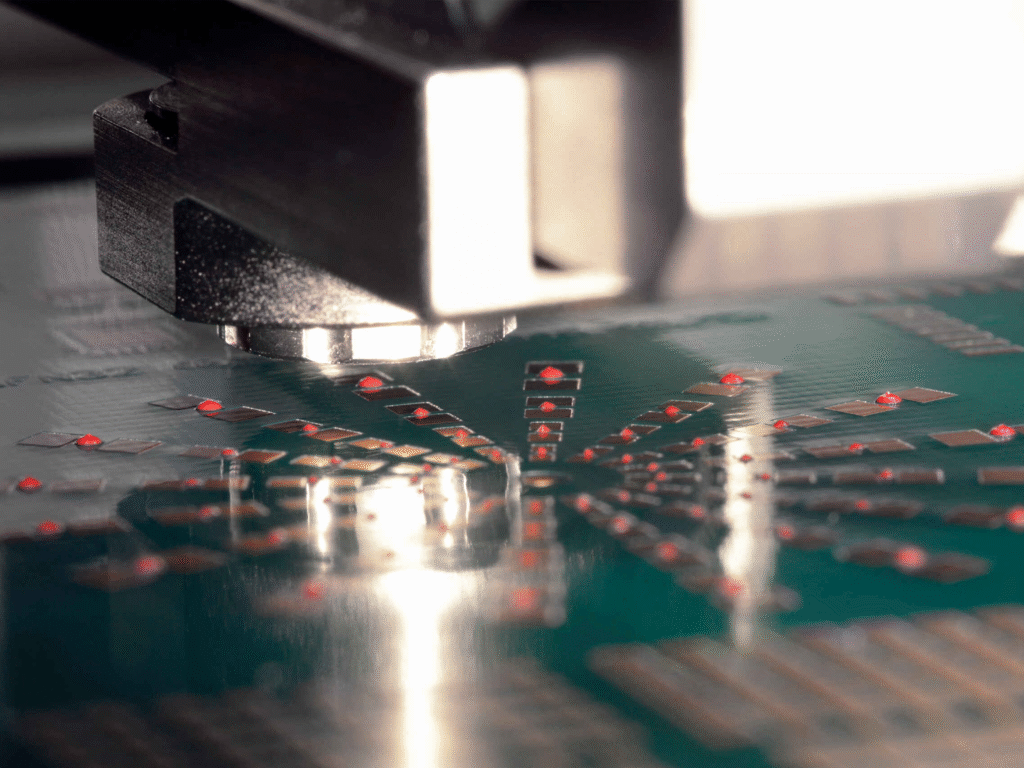

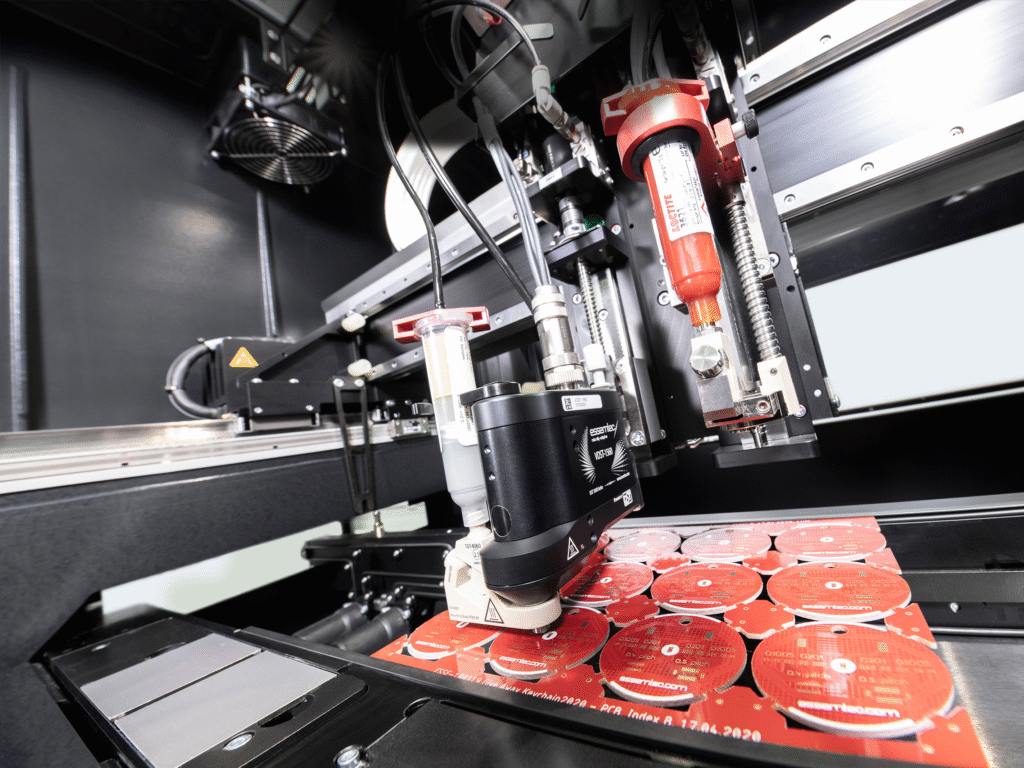

dispense technology

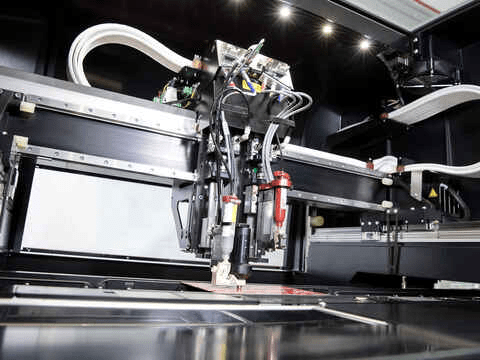

- Up to 2 valves simultaneously
- 5 different valves, large application range
productivity
- Valve performance 780’000 - System Ø 310’000 dots/h
- Up to 2’000’000 dots/h line mode
small footprint
- Requires only 1 sqm of production floor
- Machine fits through 90 cm wide door
mineral cast
- No vibration, symmetrical mineral casting
- No warpage, no thermal drift

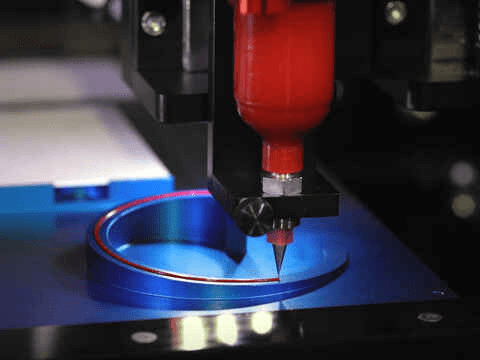

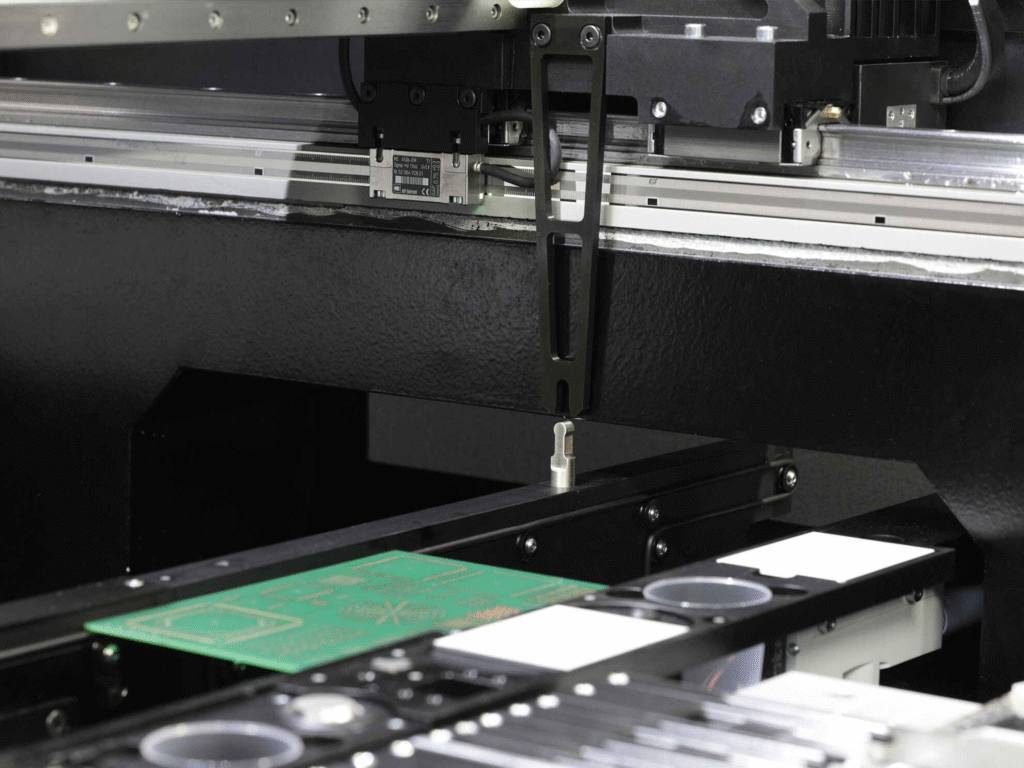

height mapping
- Mapping of heights using laser technology
- Compensation of substrate warp / 3D contour

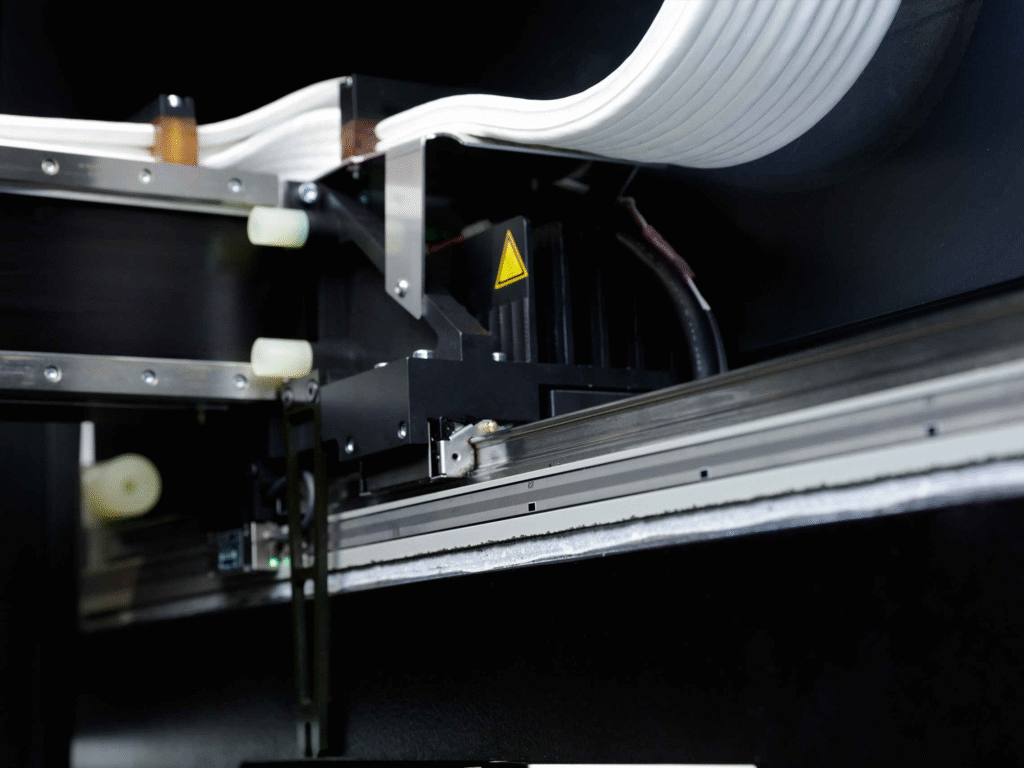

linear motors
- Fast, reliable double drive linear motors
- No maintenance, longest lifetime
| Spider | |||
|---|---|---|---|
| Process | Maximum dispensing speed | Piezo Jet Valve: 150‘000 dots/h | |
| Dynamic Shockwave Valve: 80‘000 Dots/h | |||
| Time/Pressure Valve: 28‘000 Dots/h | |||
| Archimedean Screw Valve: 24‘000 Dots/h | |||
| Dispensing mode | Dot, line, curve, interpolated 3D contour | ||
| Accuracy | Placement XY dots | 40 μm (3σ) | |
| Positioning Z axis | 20 μm (3σ) | ||
| PCB | PCB dimensions | 50 x 50 mm bis zu 406 x 305 mm (2 x 2” up to 16 x 12”) | |
| Dimensions | Machine footprint | 880 x 1090 mm (34.7 x 43”) |

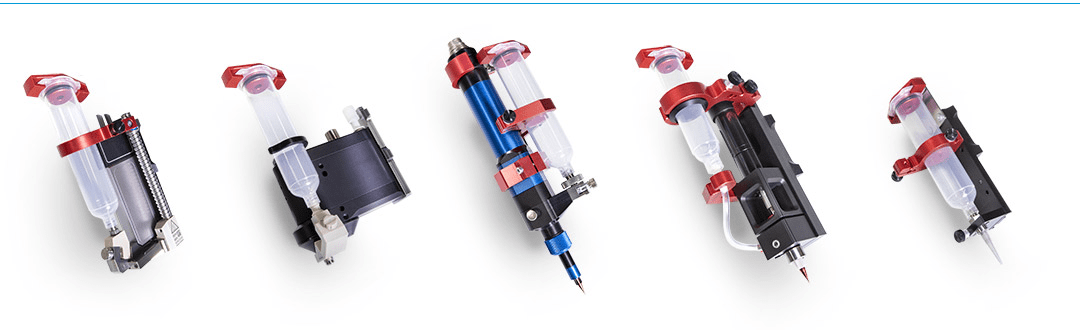

Valves and Pumps
| Piezo Jet | Shockwave Jet | Volume | Screw | Time-Pressure |
|---|---|---|---|---|
| SMD-Adhesives, Underfill, Silver Epoxy, UV-Adhesives, Globe Top, Encapsulation, Dielectric Ink |
Solder Paste, Liquid Metal |
Underfill, Gasketing, Globe Top, Dam and Fill, Solder Paste |
Solder Paste, SMD-Adhesive, Globe Top, Encapsulation, Silver Epoxy, Dam and Fill |
Gasketing, Globe Top, Encapsulation, Solder Paste, SMD-Adhesive, Silver Epoxy, Dam and Fill |
| Low - High Viscosity | High Viscosity | Low - High Viscosity | High Viscosity | High Viscosity |
| Max Frequency: 2'000'000 dots/h BGA Jet-on-the-Fly: 780'000 dots/h BGA Stop & Jet: 177'000 dots/h |
Max Frequency: 780'000 dots/h BGA Jet-on-the-Fly: 480'000 dots/h Average Speed: 310'000 dots/h |
26'000 dots/h (BGA Pattern*) |
30'000 dots/h (BGA Pattern*) |
38'000 dots/h (BGA Pattern*) |
* Full Speed: Dot size 0.5 mm, dot matrix 0.8 x 0.8 mm, 1000 dots, medium: Loctite 3621
